512Kb I2C/2-Wire Serial EEPROM memory, organized as 64K x 8, features a maximum access time of 900ns and operates at frequencies up to 400kHz. This integrated circuit is housed in a 14-lead TSSOP package with tin matte contact plating, measuring 5mm in length, 4.4mm in width, and 0.9mm in height. It supports a supply voltage range of 2.5V to 5.5V, with a nominal supply voltage of 5.5V and a maximum supply current of 5mA. The device offers write protection and is RoHS compliant, with an operating temperature range from -40°C to 85°C.
Frequency400kHz
PackageTSSOP
Current5mA
Quick Jump:
Technical Specifications
Microchip 24LC512-I/ST14 technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
512Kb
Frequency
400kHz
Height
0.9mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
5mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
512Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Organization
64KX8
Package Quantity
96
Packaging
Rail/Tube
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
4.4mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC512-I/ST14 Datasheet
Download the complete datasheet for Microchip 24LC512-I/ST14 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

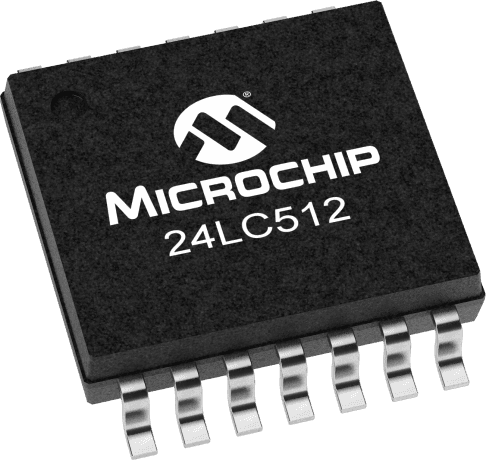

Product Images
