64Kb Serial EEPROM memory, organized as 8K x 8, featuring a 2-Wire I2C interface. Operates with supply voltages from 2.5V to 5.5V, supporting a maximum frequency of 400kHz. Offers a fast access time of 900ns and a write cycle time of 5ms. Packaged in an 8-pin SOIC for surface mounting, this lead-free and RoHS-compliant component is suitable for operation between -40°C and 85°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC64-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
64Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5.33mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
8KX8
Package Quantity
90
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
5.38mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC64-I/SM Datasheet
Download the complete datasheet for Microchip 24LC64-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

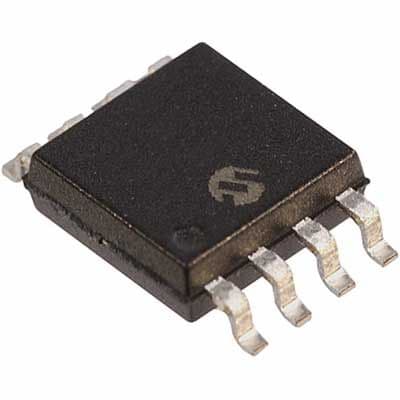

Product Images
