Microchip
24LC64T-E/SM
8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC64T-E/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
64Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
8KX8
Package Quantity
2100
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC64T-E/SM Datasheet
Download the complete datasheet for Microchip 24LC64T-E/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

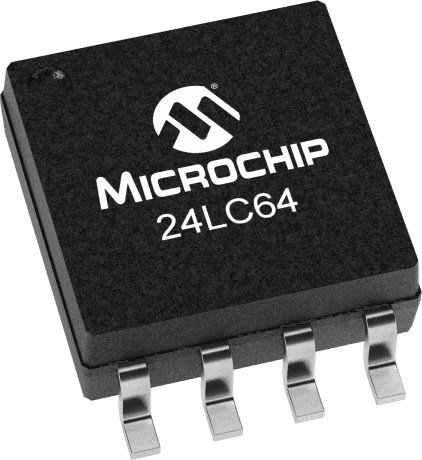

Product Images
