64Kb I2C/2-Wire Serial EEPROM, organized as 8K x 8. Features a 400kHz maximum frequency and 900ns access time. This non-volatile memory component operates from a 2.5V to 5.5V supply voltage range. It is surface mountable in a SOIC package and is RoHS compliant. Write protection is supported.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC64T-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
64Kb
Frequency
400kHz
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
2100
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC64T-I/SM Datasheet
Download the complete datasheet for Microchip 24LC64T-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

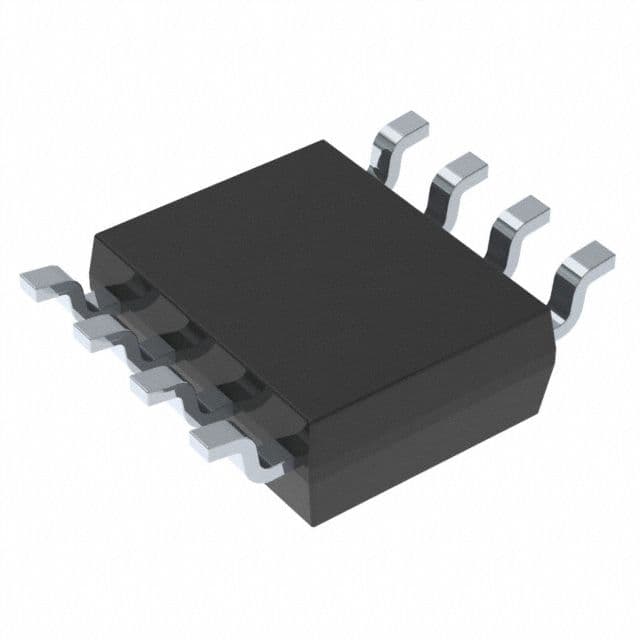

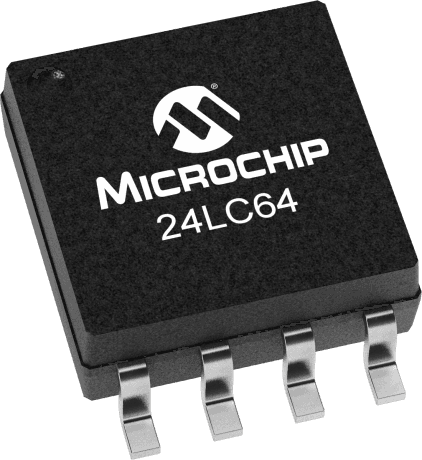

Product Images
