64Kb I2C/2-Wire Serial EEPROM, organized as 8K x 8, offers non-volatile memory with a maximum access time of 900ns and a maximum operating frequency of 400kHz. This through-hole component features a PDIP package with a 0.300-inch body, operating from 2.5V to 6V supply voltage. It supports I2C and 2-wire serial interfaces, with a maximum supply current of 3mA and a write cycle time of 5ms. RoHS compliant and lead-free, this component is suitable for applications requiring reliable data storage.
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24LC65-I/P technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
PDIP
Density
64Kb
Frequency
400kHz
Height
0.195inch
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
10.16mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
6V
Memory Size
64Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Through Hole
Number of Words
8000
Organization
8KX8
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
6V
Width
0.28inch
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC65-I/P Datasheet
Download the complete datasheet for Microchip 24LC65-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

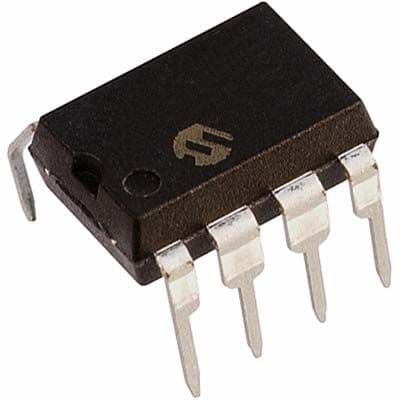

Product Images
