64Kb serial EEPROM memory IC with I2C interface. Features 8K x 8 organization, 900ns access time, and operates at up to 400kHz. Supports 2.5V to 6V supply voltage and is available in a lead-free SOIC surface mount package. Includes write protection and a maximum operating temperature of 85°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC65-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
64Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5.33mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Memory Size
64Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
8000
Organization
8KX8
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
6V
Width
5.38mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC65-I/SM Datasheet
Download the complete datasheet for Microchip 24LC65-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

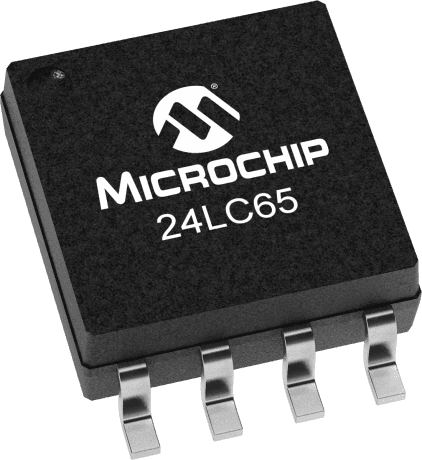

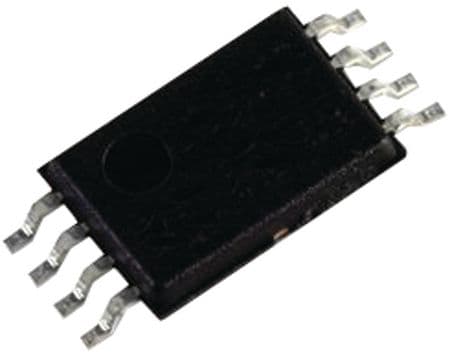

Product Images
