1Kb I2C/2-Wire Serial EEPROM, organized as 128x8, featuring a 400kHz maximum frequency and 900ns access time. This surface mount component operates from 1.5V to 3.6V, with a nominal supply voltage of 3.3V. It is housed in a TDFN-8 package with gold contact plating, measuring 2mm x 3mm x 0.73mm. RoHS compliant and lead-free, it offers write protection and a 5ms maximum write cycle time.
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24VL014HT/MNY technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Contact Plating
Gold
Density
1Kb
Frequency
400kHz
Height
0.73mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
2mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Voltage
3.6V
Memory Size
1Kb
Memory Type
EEPROM,
Min Supply Voltage
1.5V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
128X8
Package Quantity
3300
Packaging
Tape and Reel
Programming Voltage
3.6V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
3.6V
Termination
SMD/SMT
Width
3mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24VL014HT/MNY Datasheet
Download the complete datasheet for Microchip 24VL014HT/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

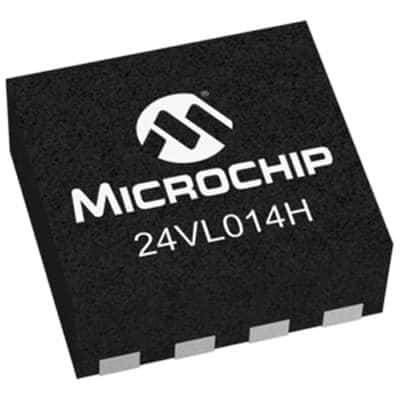

Product Images
