Frequency10MHz
PackagePDIP
Current5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25AA080D-I/P technical specifications.
General
Access Time
160ns
Access Time-Max
160ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
8Kb
Frequency
10MHz
Interface
SPI, Serial
Max Frequency
10MHz
Max Operating Temperature
85°C
Memory Size
8Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Through Hole
Operating Supply Voltage
5V
Organization
1KX8
Package Quantity
60
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA080D-I/P Datasheet
Download the complete datasheet for Microchip 25AA080D-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

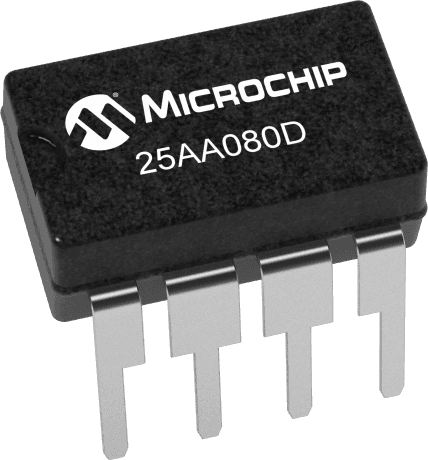

Product Images
