Microchip

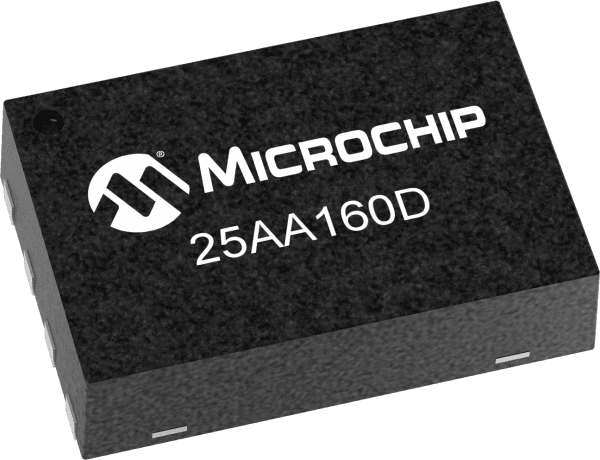

25AA160DT-I/MNY
1K X 8 SPI BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, PLASTIC, TDFN-8
Frequency10MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA160DT-I/MNY technical specifications.
General
| Access Time | 160ns |
| Access Time-Max | 160ns |
| Contact Plating | Gold |
| Density | 16Kb |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 3MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 25AA160DT-I/MNY Datasheet
Download the complete datasheet for Microchip 25AA160DT-I/MNY to view detailed technical specifications.
No datasheet is available for this part.
