32Kb Serial EEPROM memory, organized as 4K x 8, featuring SPI interface with a maximum frequency of 10MHz. Offers access times as fast as 50ns. Operates across a wide voltage range from 1.8V to 5.5V, with a nominal operating voltage of 5V. Packaged in a lead-free, RoHS-compliant 8-pin SOIC surface-mount case. Supports write protection and operates within a temperature range of -40°C to 85°C.
Frequency10MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA320A-I/SN technical specifications.
General
Access Time
50ns
Access Time-Max
160ns
Package/Case
SOIC
Density
32Kb
Frequency
10MHz
Height
1.5mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Words
4096
Operating Supply Voltage
5V
Organization
4KX8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA320A-I/SN Datasheet
Download the complete datasheet for Microchip 25AA320A-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

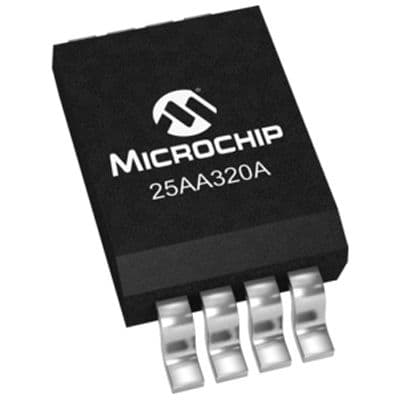

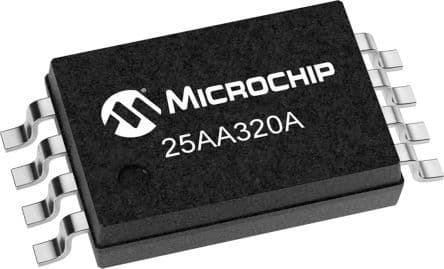

Product Images
