32Kb SPI EEPROM memory, 4K x 8 organization, offering 10MHz maximum frequency and 50ns access time. Features a 1.8V to 5.5V operating voltage range and 5mA supply current. This surface mount device is RoHS compliant and lead-free, suitable for operation between -40°C and 85°C. Includes write protection and a maximum write cycle time of 5ms.
Frequency10MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA320AT-I/MNY technical specifications.
General
Access Time
50ns
Access Time-Max
160ns
Density
32Kb
Frequency
10MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
4KX8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA320AT-I/MNY Datasheet
Download the complete datasheet for Microchip 25AA320AT-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

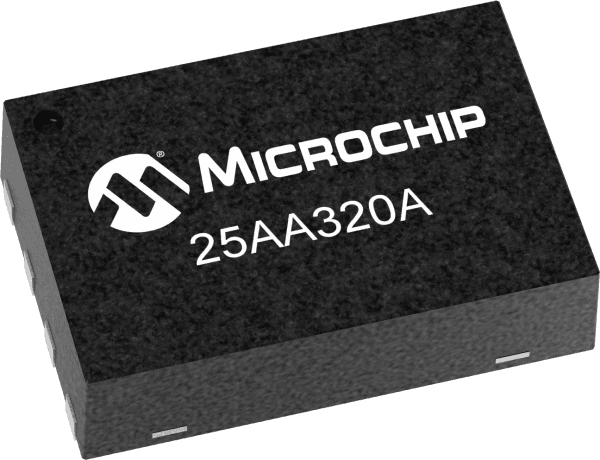

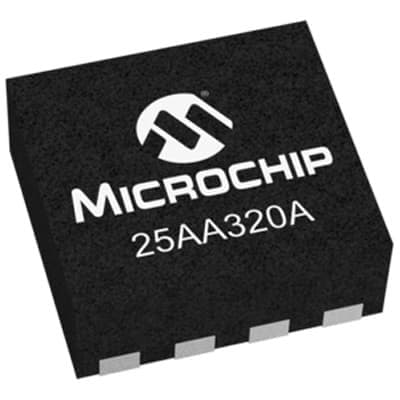

Product Images
