4Kb SPI serial EEPROM with 512 x 8 organization. Features a 230ns access time and operates at frequencies up to 2MHz. This integrated circuit supports SPI interface and is housed in a SOIC package. It operates from a 2.5V to 5.5V supply voltage range and is RoHS compliant.
Frequency2MHz
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Microchip 25LC040T-I/SN technical specifications.
General
Access Time
230ns
Access Time-Max
230ns
Package/Case
SOIC
Density
4Kb
Frequency
2MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
2MHz
Max Operating Temperature
85°C
Memory Size
4Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Organization
512X8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC040T-I/SN Datasheet
Download the complete datasheet for Microchip 25LC040T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

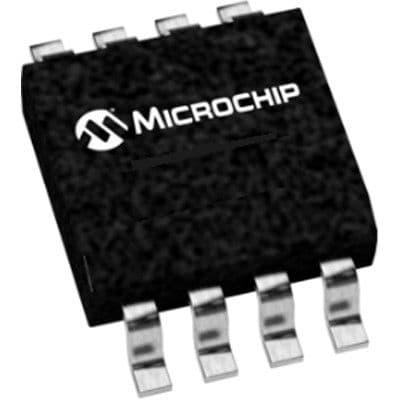

Product Images
