512Kb SPI serial EEPROM memory, organized as 64K x 8, featuring a 50ns access time and a maximum operating frequency of 20MHz. This surface mount device operates from a 2.5V to 5.5V supply voltage range and is housed in a SOIC package. It offers write protection and is RoHS compliant.
Frequency20MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25LC512-I/SM technical specifications.
General
| Access Time | 50ns |
| Access Time-Max | 50ns |
| Package/Case | SOIC |
| Density | 512Kb |
| Frequency | 20MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Organization | 64KX8 |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Voltage-Nom | 5.5V |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 25LC512-I/SM Datasheet
Download the complete datasheet for Microchip 25LC512-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

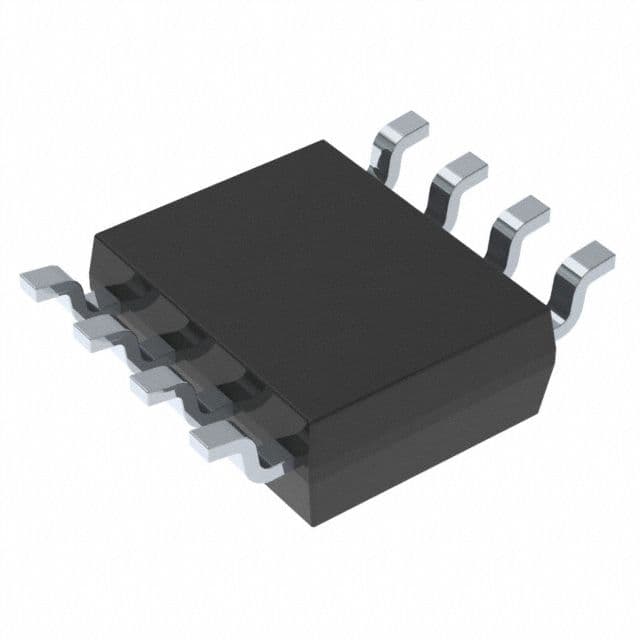

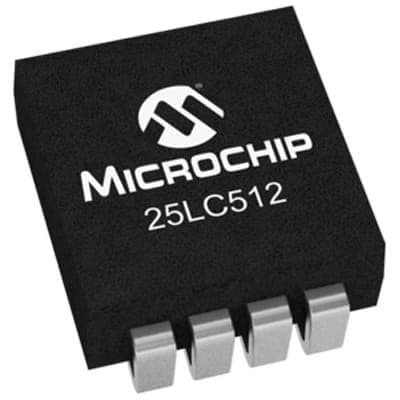

Product Images
