Microchip

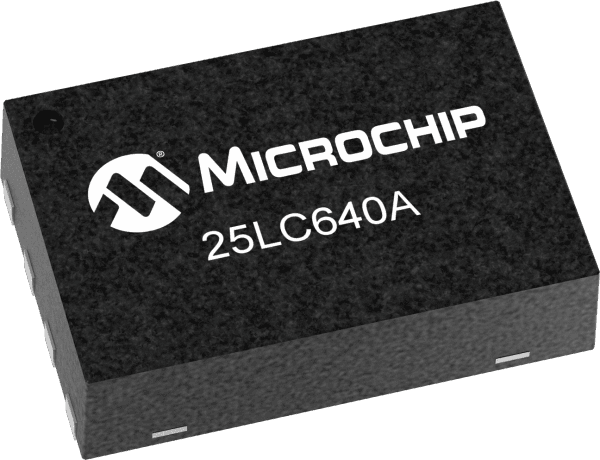

25LC640AT-E/MNY
8K X 8 SPI BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, PLASTIC, TDFN-8
Frequency5MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25LC640AT-E/MNY technical specifications.
General
Access Time
100ns
Access Time-Max
100ns
Density
64Kb
Frequency
5MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
5MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC640AT-E/MNY Datasheet
Download the complete datasheet for Microchip 25LC640AT-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
