1Kb MICROWIRE bus serial EEPROM with 3-wire interface, offering 200ns maximum access time. This integrated circuit operates at up to 3MHz and features a 5V supply voltage range of 4.5V to 5.5V. Packaged in a 0.300-inch PDIP with tin matte contact plating, it supports through-hole mounting. The component is RoHS compliant and includes write protection, with an operating temperature range of -40°C to 85°C.
Frequency3MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 93C46C-I/P technical specifications.
General
Access Time-Max
200ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
3MHz
Height
0.195inch
Interface
MICROWIRE, 3-WIRE, Serial
Lead Free
Lead Free
Length
0.4inch
Max Frequency
3MHz
Max Operating Temperature
85°C
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Voltage
5V
Package Quantity
60
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Current
2mA
Width
0.28inch
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93C46C-I/P Datasheet
Download the complete datasheet for Microchip 93C46C-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

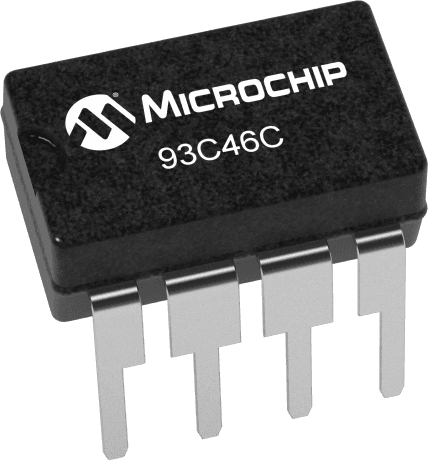

Product Images
