Microchip
93C66A-E/P
512 X 8 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Frequency2MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 93C66A-E/P technical specifications.
General
Access Time-Max
250ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
4Kb
Frequency
2MHz
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Max Frequency
3MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Voltage
5V
Organization
512X8
Package Quantity
60
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
NO
Compliance
RoHS
Compliant
Datasheet
Microchip 93C66A-E/P Datasheet
Download the complete datasheet for Microchip 93C66A-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

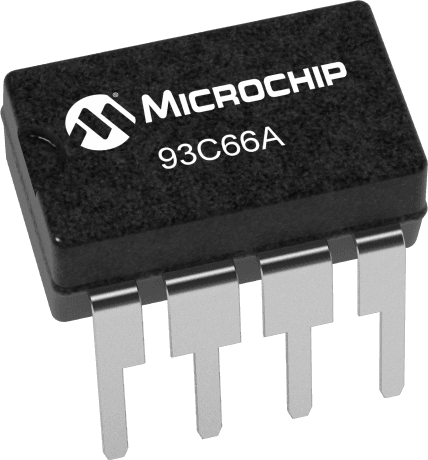

Product Images
