4Kb MICROWIRE bus serial EEPROM, organized as 512 x 8. Features a 250ns maximum access time and operates at up to 2MHz. This non-volatile memory component is housed in a lead-free, RoHS compliant SOIC package with tin-matte contact plating. Designed for surface mounting, it operates from a 4.5V to 5.5V supply voltage range.
Frequency2MHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93C66A-I/SN technical specifications.
General
| Access Time-Max | 250ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 4Kb |
| Frequency | 2MHz |
| Height | 1.5mm |
| Interface | MICROWIRE, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Words | 512 |
| Operating Supply Voltage | 5V |
| Organization | 512X8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Width | 3.9mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93C66A-I/SN Datasheet
Download the complete datasheet for Microchip 93C66A-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

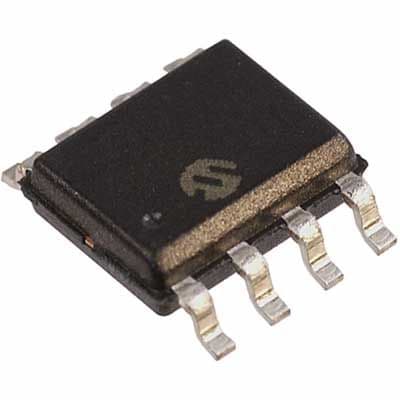

Product Images
