Frequency3MHz
PackageSOT-23-6
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93C76BT-E/OT technical specifications.
General
| Access Time | 10ms |
| Access Time-Max | 100ns |
| Package/Case | SOT-23-6 |
| Contact Plating | Tin, Matte |
| Density | 8Kb |
| Frequency | 3MHz |
| Interface | MICROWIRE, Serial |
| Lead Free | Lead Free |
| Max Frequency | 3MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 512X16 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93C76BT-E/OT Datasheet
Download the complete datasheet for Microchip 93C76BT-E/OT to view detailed technical specifications.
No datasheet is available for this part.

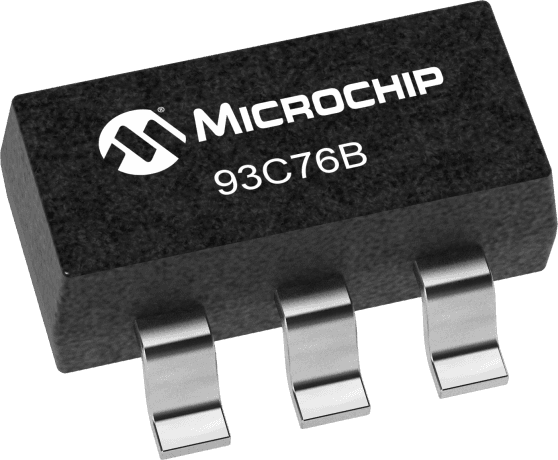

Product Images
