Microchip
93C86BT-E/OT
1K X 16 MICROWIRE BUS SERIAL EEPROM, PDSO6, ROHS COMPLIANT, PLASTIC, SOT-23, 6 PIN
Frequency3MHz
PackageSOT-23-6
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93C86BT-E/OT technical specifications.
General
Access Time-Max
100ns
Package/Case
SOT-23-6
Contact Plating
Tin, Matte
Density
16Kb
Frequency
3MHz
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Max Frequency
3MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
1KX16
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93C86BT-E/OT Datasheet
Download the complete datasheet for Microchip 93C86BT-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

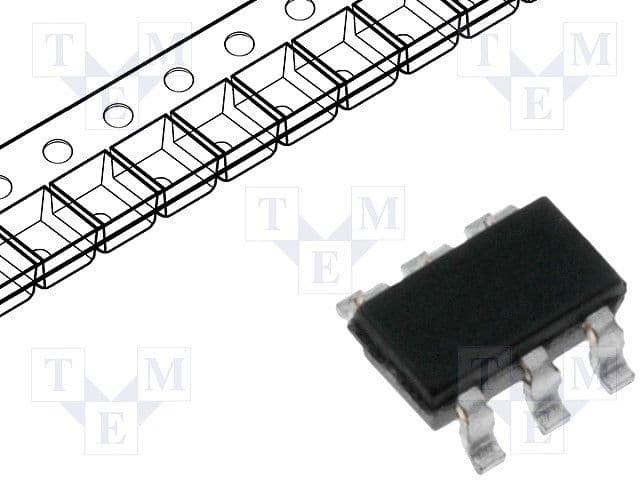

Product Images
