Serial EEPROM memory with 1Kb density, organized as 64 x 16 bits. Features a MICROWIRE/3-wire serial interface and operates with a supply voltage range of 2.5V to 6V, with a nominal 5.5V. Offers a maximum frequency of 2MHz and an access time of 200ns. This surface mount component is housed in an 8-pin SOIC package with tin/matte contact plating. RoHS compliant and lead-free, it supports write protection and has a maximum operating temperature of 70°C.
Frequency2MHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC46B/SN technical specifications.
General
Access Time
200ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
1Kb
Frequency
2MHz
Height
1.5mm
Interface
MICROWIRE, 3-WIRE, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
2MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
6V
Memory Size
1Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
64X16
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
6ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC46B/SN Datasheet
Download the complete datasheet for Microchip 93LC46B/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

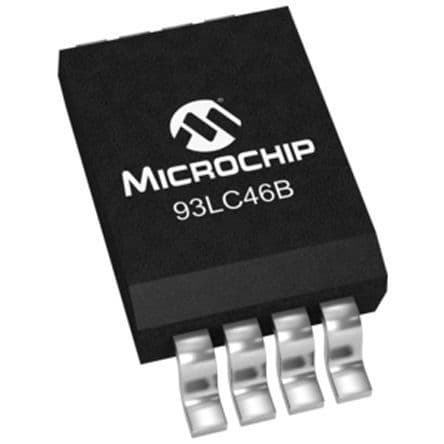

Product Images
