Frequency3MHz
PackageSOT-23
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC46CT-I/MNY technical specifications.
General
Access Time-Max
200ns
Package/Case
SOT-23
Contact Plating
Gold
Density
1Kb
Frequency
3MHz
Interface
Serial
Max Frequency
3MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC46CT-I/MNY Datasheet
Download the complete datasheet for Microchip 93LC46CT-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

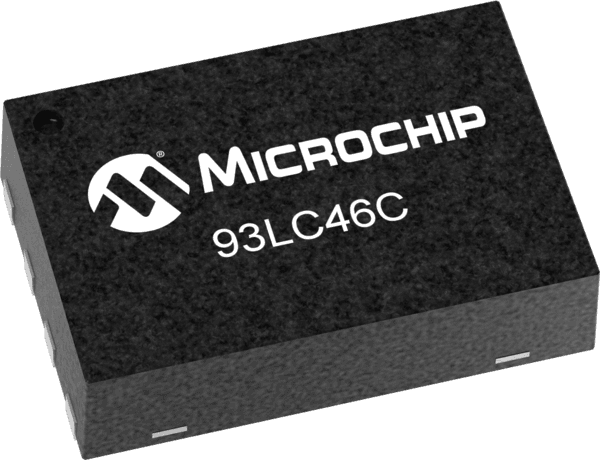

Product Images
