4Kb MICROWIRE bus serial EEPROM with 250ns maximum access time. Features a 3-wire serial interface and operates at up to 2MHz. Available in a lead-free SOIC package with tin-matte contact plating. Supports a supply voltage range of 2.5V to 5.5V and includes write protection.
Frequency2MHz
PackageSOIC
Current3mA
Quick Jump:
Technical Specifications
Microchip 93LC66-I/SN technical specifications.
General
| Access Time-Max | 250ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 4Kb |
| Frequency | 2MHz |
| Height | 1.55mm |
| Interface | MICROWIRE, 3-WIRE, Serial |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.99mm |
| Write Cycle Time-Max (tWC) | 10ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93LC66-I/SN Datasheet
Download the complete datasheet for Microchip 93LC66-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

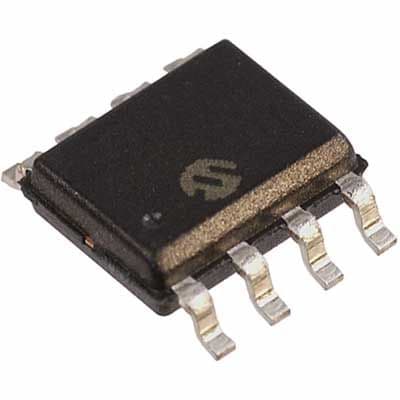

Product Images
