4Kb serial EEPROM memory, organized as 512 x 8, featuring a MICROWIRE interface and a maximum access time of 250ns. This non-volatile memory operates at frequencies up to 2MHz and supports a supply voltage range of 2.5V to 5.5V. Packaged in a lead-free, RoHS-compliant TSSOP-8 with tin matte contact plating, it is designed for surface mounting. Operating temperature range is -40°C to 85°C.
Frequency2MHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC66A-I/ST technical specifications.
General
Access Time-Max
250ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
4Kb
Frequency
2MHz
Height
1mm
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Length
3mm
Max Frequency
2MHz
Max Operating Temperature
85°C
Memory Size
4Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
512X8
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Width
4.4mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC66A-I/ST Datasheet
Download the complete datasheet for Microchip 93LC66A-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

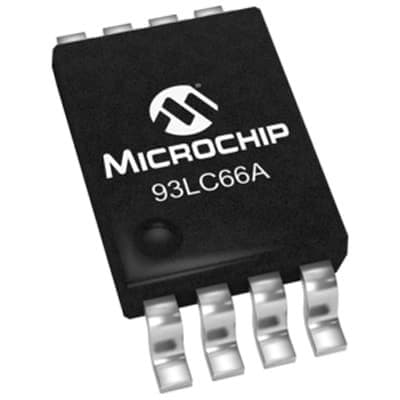

Product Images
