Serial EEPROM memory, 4Kb density, organized as 512 x 8 bits. Features MICROWIRE serial interface with a maximum frequency of 2MHz and a maximum access time of 100ns. Operates with supply voltages from 2.5V to 6V, with a nominal 5.5V. Packaged in a lead-free, 8-pin SOIC surface-mount package, suitable for automotive applications. RoHS compliant.
Frequency2MHz
PackageSOIC
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC66A/SN technical specifications.
General
| Access Time-Max | 100ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 4Kb |
| Frequency | 2MHz |
| Height | 1.5mm |
| Interface | MICROWIRE, Serial |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 6V |
| Memory Size | 4Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Words | 512 |
| Organization | 512X8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Programming Voltage | 6V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.9mm |
| Write Cycle Time-Max (tWC) | 6ms |
| Write Protection | NO |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93LC66A/SN Datasheet
Download the complete datasheet for Microchip 93LC66A/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

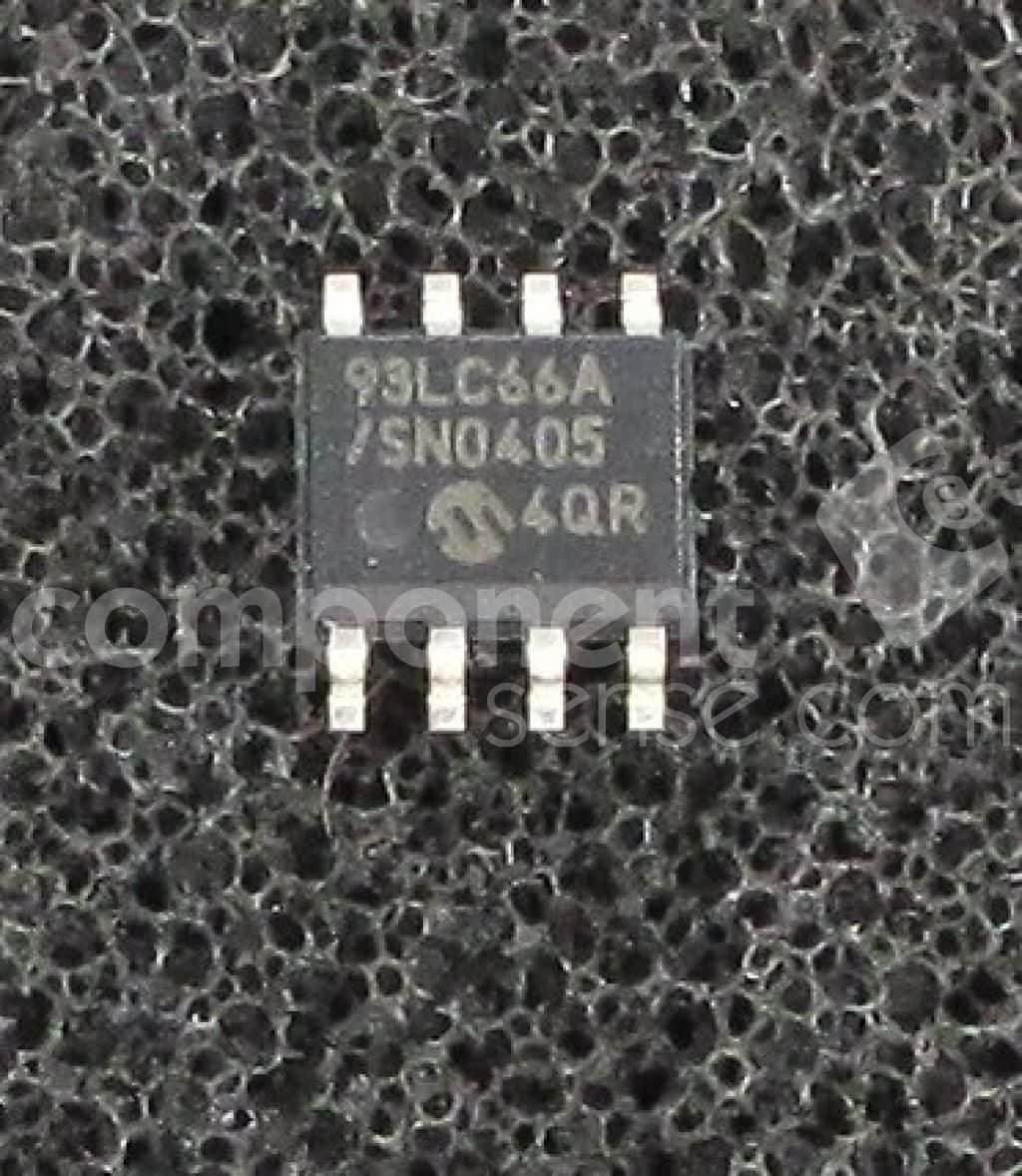

Product Images
