4Kb MICROWIRE bus serial EEPROM, surface mountable in an 8-pin SOIC package. Features a 200ns access time and operates at up to 3MHz. Supports a 2.5V to 5.5V supply voltage range with a 2mA supply current. This lead-free, RoHS compliant component offers 4Kb of EEPROM memory with write protection capabilities.
Frequency3MHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC66C-I/SN technical specifications.
General
Access Time
200ns
Access Time-Max
200ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
4Kb
Frequency
3MHz
Height
1.25mm
Interface
MICROWIRE, Serial, 3-WIRE
Lead Free
Lead Free
Length
4.9mm
Max Frequency
3MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
6ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC66C-I/SN Datasheet
Download the complete datasheet for Microchip 93LC66C-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

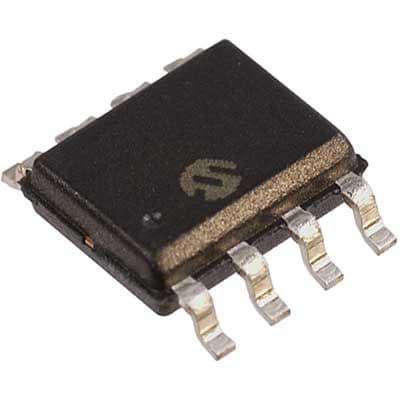

Product Images
