Frequency1MHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT24CS04-STUM-T technical specifications.
General
Access Time
550ns
Access Time-Max
550ns
Package/Case
SOT-23
Density
4Kb
Frequency
1MHz
Interface
I2C, Serial, 2-Wire
Max Frequency
1MHz
Max Operating Temperature
85°C
Memory Size
4Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.7V
Mount
Surface Mount
Nominal Supply Current
3mA
Organization
512X8
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT24CS04-STUM-T Datasheet
Download the complete datasheet for Microchip AT24CS04-STUM-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

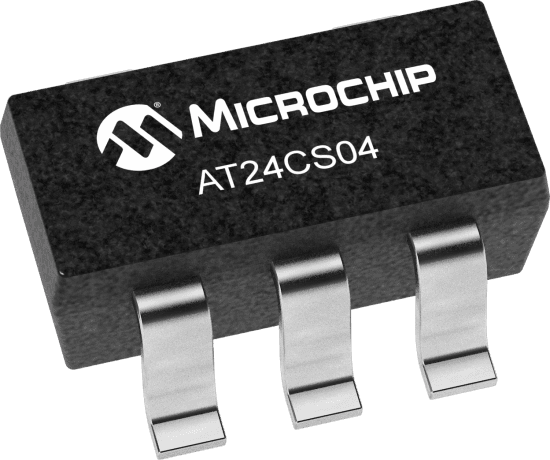

Product Images
