Serial EEPROM memory IC with 4Kb density, organized as 512x8. Features a 2-Wire and SPI serial interface, operating at up to 10MHz. Offers a fast 40ns access time and a wide operating voltage range of 2.7V to 5.5V. Packaged in an 8-pin SOIC surface-mount format, this lead-free and RoHS-compliant component includes write protection.
Frequency10MHz
PackageSOIC
Voltage5V
Current10mA
Quick Jump:
Technical Specifications
Microchip AT25040AN-10SU-2.7 technical specifications.
General
Access Time
40ns
Access Time-Max
40ns
Package/Case
SOIC
Density
4Kb
Frequency
10MHz
Interface
2-Wire, SPI, Serial
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
512X8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
10mA
Voltage
5V
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT25040AN-10SU-2.7 Datasheet
Download the complete datasheet for Microchip AT25040AN-10SU-2.7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

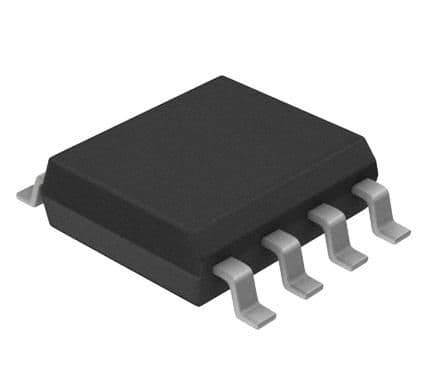

Product Images
