PackageCeramic
Current50mA
MountingSurface Mount
Quick Jump:
Technical Specifications

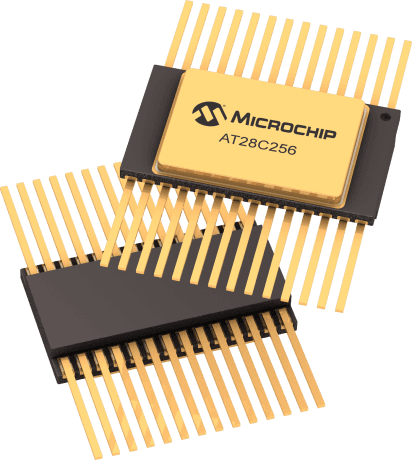

Microchip AT28C256-25FM/883 technical specifications.
General
Access Time
250ns
Access Time-Max
250ns
Package/Case
Ceramic
Contact Plating
Tin, Lead
Density
256Kb
Interface
SPI, Parallel
Max Operating Temperature
125°C
Memory Size
256Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
32KX8
Package Quantity
15
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
No
Supply Current
50mA
Write Protection
YES
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip AT28C256-25FM/883 Datasheet
Download the complete datasheet for Microchip AT28C256-25FM/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
