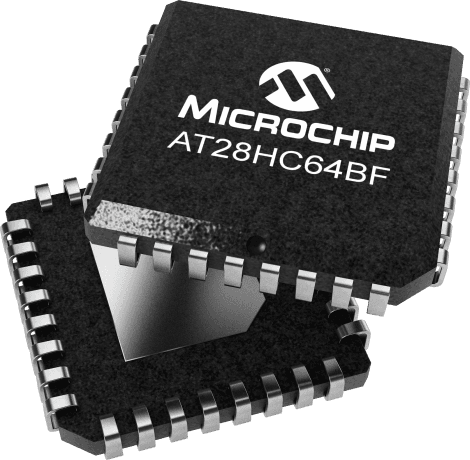

64Kb Parallel EEPROM memory IC, organized as 8K x 8, featuring a 120ns access time. This surface mount component operates from a 4.5V to 5.5V supply voltage, with a typical 5V operating voltage and a 5.5V programming voltage. Encased in a 32-pin PLCC package with tin-matte contact plating, it offers write protection and operates within a temperature range of -40°C to 85°C.
PackagePLCC
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT28HC64BF-12JU technical specifications.
General
Access Time
120ns
Access Time-Max
120ns
Package/Case
PLCC
Contact Plating
Tin, Matte
Density
64Kb
Interface
Parallel
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
32
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
40mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT28HC64BF-12JU Datasheet
Download the complete datasheet for Microchip AT28HC64BF-12JU to view detailed technical specifications.
