32-bit AVR microcontroller featuring 256KB FLASH memory and 32KB RAM. Operates at up to 60MHz with an AVR core architecture. Offers multiple interfaces including I2C, SPI, USB, UART, and USART. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Operates from 1.65V to 3.6V supply voltage and is available in a VQFN surface mount package.
Frequency60MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3B0256-Z2UT technical specifications.
General
Package/Case
VQFN
Core Architecture
AVR
Frequency
60MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, 2-Wire
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of I/Os
44
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
AVR®32 UC3 B
Compliance
RoHS
Compliant
Datasheet
Microchip AT32UC3B0256-Z2UT Datasheet
Download the complete datasheet for Microchip AT32UC3B0256-Z2UT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

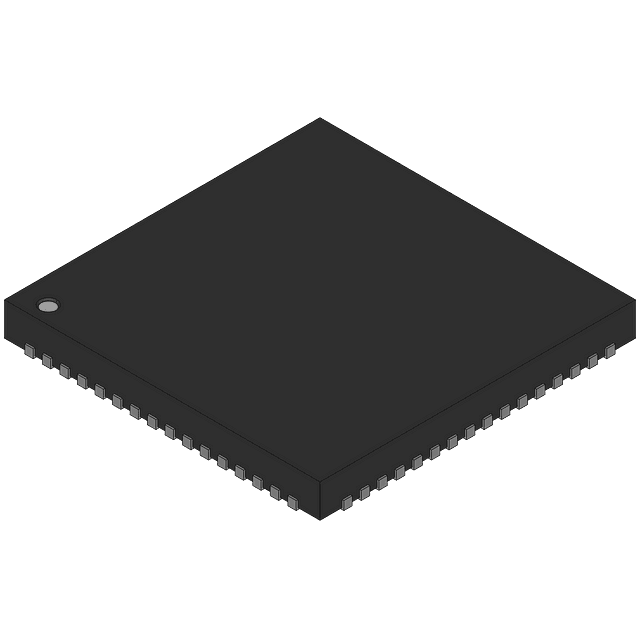

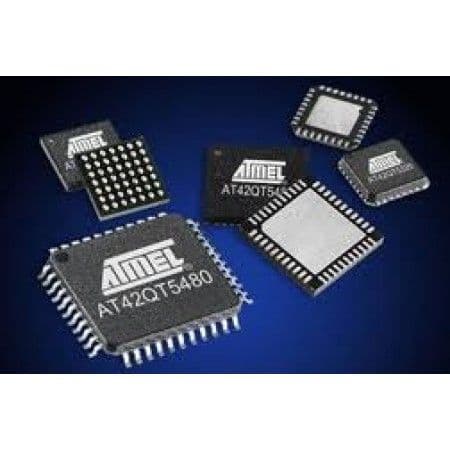

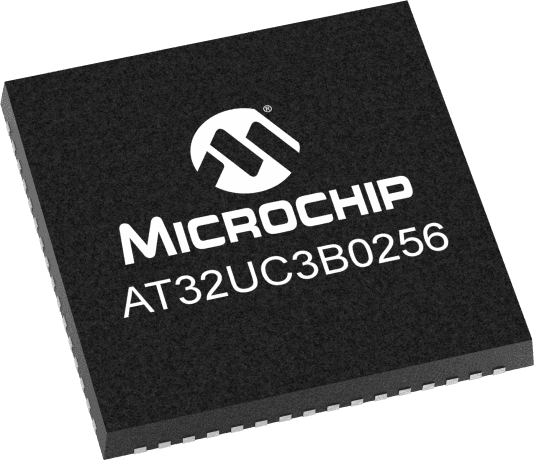

Product Images
