32-bit AVR microcontroller featuring 128KB FLASH memory and 32KB RAM. Operates at up to 60MHz with a 1.65V to 3.6V supply voltage range. Offers extensive connectivity including I2C, SPI, USB, IrDA, UART, and USART interfaces. Includes 6 ADC channels, 7 PWM channels, and 28 I/O pins. Packaged in a 48-TQFP surface-mount case, operating from -40°C to 85°C.
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3B1128-AUT technical specifications.
General
Package/Case
TQFP
Core Architecture
AVR
Data Bus Width
32b
Density
128KB
Frequency
60MHz
Height
1.05mm
Interface
I2C, SPI, USB, IrDA, UART, USART, 2-Wire
Length
7mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of ADC Channels
6
Number of I/Os
28
Number of I2C Channels
1
Number of PWM Channels
7
Number of SPI Channels
1
Number of Timers/Counters
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR®32 UC3 B
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT32UC3B1128-AUT Datasheet
Download the complete datasheet for Microchip AT32UC3B1128-AUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

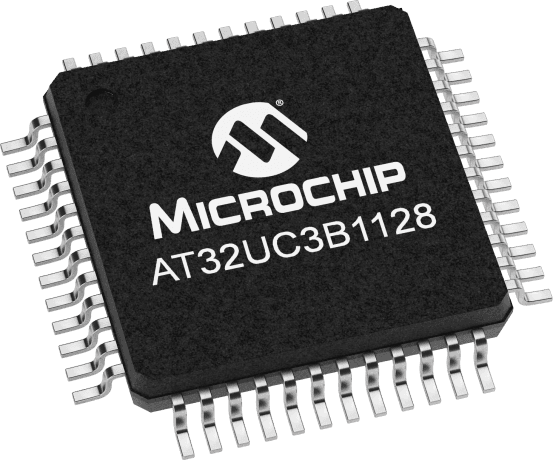

Product Images
