32-bit AVR microcontroller featuring 64KB FLASH memory and 16KB RAM. Operates at up to 60MHz with a 3.3V supply voltage, ranging from 1.65V to 3.6V. Offers 28 programmable I/Os, 6 ADC channels, and 7 PWM channels. Includes SPI, USART, I2C, USB, and other interfaces, with peripherals like DMA and watchdog timer. Packaged in a 48-pin TQFP for surface mounting.
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3B164-AUT technical specifications.
General
Package/Case
TQFP
Core Architecture
AVR
Data Bus Width
32b
Frequency
60MHz
Height
1.05mm
Interface
SPI, USART, 2-Wire, I2C, USB, IrDA, UART, I2S
Length
7mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of ADC Channels
6
Number of I/Os
28
Number of I2C Channels
1
Number of Programmable I/O
28
Number of PWM Channels
7
Number of SPI Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1250
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UC3 B
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT32UC3B164-AUT Datasheet
Download the complete datasheet for Microchip AT32UC3B164-AUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

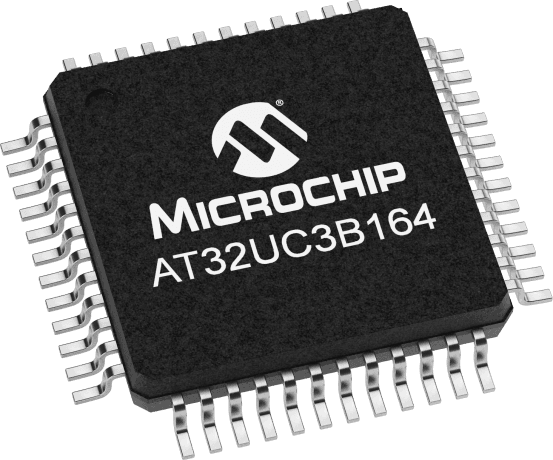

Product Images
