32-bit AVR microcontroller featuring 128KB FLASH and 32KB RAM. Operates at up to 66MHz with a 3V to 5.5V supply voltage. Offers 123 programmable I/Os and interfaces including SPI, USB, CAN, Ethernet, I2S, USART, I2C, IrDA, UART, EBI/EMI, and LIN. Includes 7 timers/counters, DMA, and a watchdog timer. Packaged in a 144-pin LQFP with tin-matte contact plating for surface mounting.
Frequency66MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3C0128C-ALUT technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
32b
Frequency
66MHz
Interface
SPI, USB, CAN, Ethernet, I2S, USART, I2C, IrDA, UART, EBI/EMI, LIN
Max Frequency
66MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
123
Number of Programmable I/O
123
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
300
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
No
Series
AVR®32 UC3 C
Watchdog Timer
Yes
Compliance
RoHS
Not Compliant
Datasheet
Microchip AT32UC3C0128C-ALUT Datasheet
Download the complete datasheet for Microchip AT32UC3C0128C-ALUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

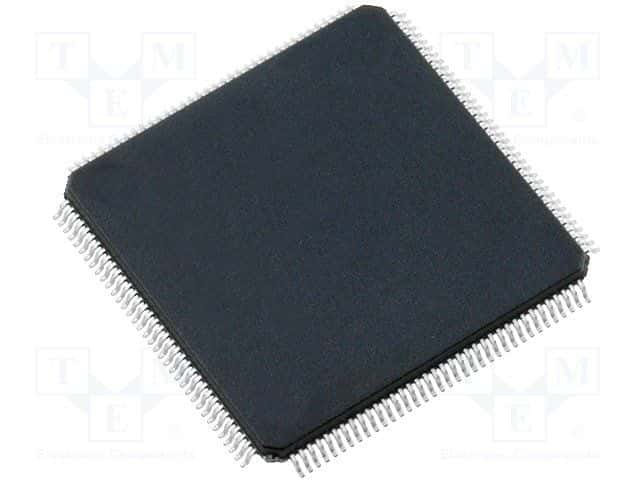

Product Images
