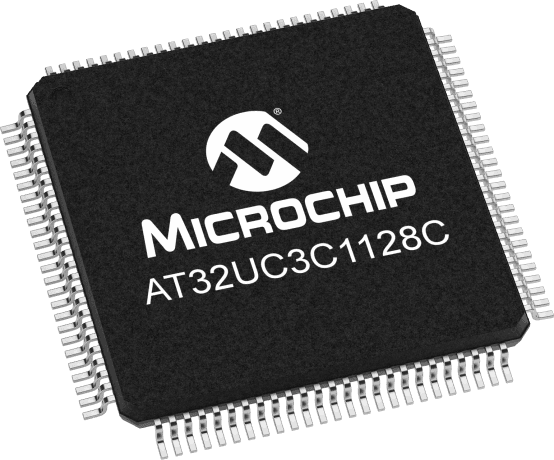

32-bit AVR microcontroller featuring 128KB FLASH and 32KB RAM. Operates at up to 66MHz with a 3V to 5.5V supply voltage range. Offers 81 programmable I/Os and supports SPI, USB, CAN, Ethernet, I2S, USART, I2C, IrDA, UART, and LIN interfaces. Includes 7 timers/counters, DMA, brown-out detect, POR, PWM, and WDT. Packaged in a 100-TQFP for surface mounting.
Frequency66MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3C1128C-AUR technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
32b
Frequency
66MHz
Interface
SPI, USB, CAN, Ethernet, I2S, USART, I2C, IrDA, UART, LIN
Max Frequency
66MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
81
Number of Programmable I/O
81
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
No
Series
AVR®32 UC3 C
Watchdog Timer
Yes
Compliance
RoHS
Not Compliant
