8-bit microcontroller featuring 64KB FLASH memory and 2.25KB RAM. Operates at up to 60MHz with an 8051 core architecture. Offers UART, USART, and SPI interfaces, along with 3 timers/counters and 36 I/Os. Includes POR, PWM, and WDT peripherals. Packaged in a 44-pin PLCC for surface mounting, with an operating voltage range of 3V to 5.5V.
Frequency60MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT89C51AC3-SLSUM technical specifications.
General
Access Time
60us
Package/Case
PLCC
Core Architecture
8051
Frequency
60MHz
Interface
UART, USART, SPI
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
36
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
2.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip AT89C51AC3-SLSUM Datasheet
Download the complete datasheet for Microchip AT89C51AC3-SLSUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

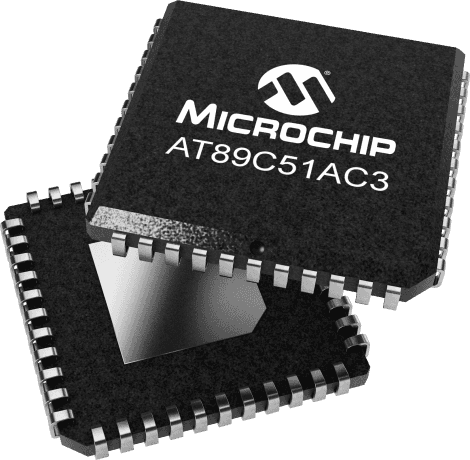

Product Images
