Technical Specifications
Microchip AT89C51CC02CA-SISUM technical specifications.
General
| Access Time | 40us |
| Package/Case | PLCC |
| Core Architecture | 80C51 |
| Frequency | 40MHz |
| Interface | UART, USART, CAN |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of I/Os | 20 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | AT89C CAN |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT89C51CC02CA-SISUM Datasheet
Download the complete datasheet for Microchip AT89C51CC02CA-SISUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

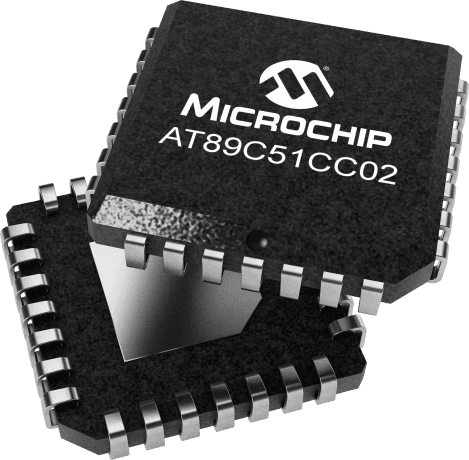

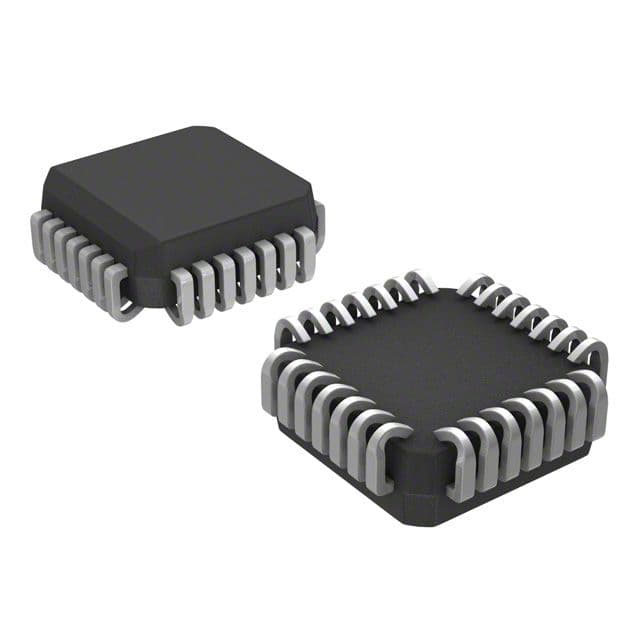

Product Images
