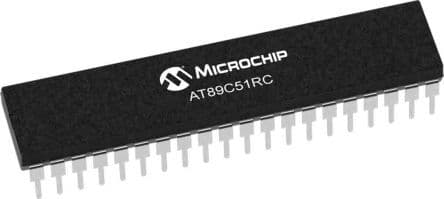

8-bit microcontroller featuring 32KB FLASH memory and 512B RAM. Operates at up to 24MHz with an 8051 core architecture and an 8-bit data bus. Offers 32 I/Os, SPI, UART, and USART interfaces, plus 3 timers/counters and a watchdog timer. Housed in a 40-pin DIP package for through-hole mounting, with an operating temperature range of -40°C to 85°C and a supply voltage of 4V to 5.5V. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT89C51RC-24PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip AT89C51RC-24PU technical specifications.
| Package/Case | DIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 4.44mm |
| Interface | SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 52.57mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of I/Os | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | 89C |
| Watchdog Timer | Yes |
| Width | 13.97mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip AT89C51RC-24PU to view detailed technical specifications.
