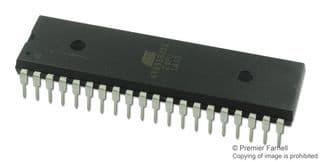

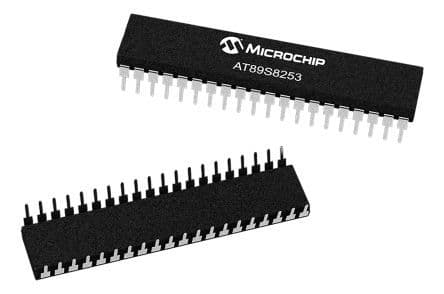

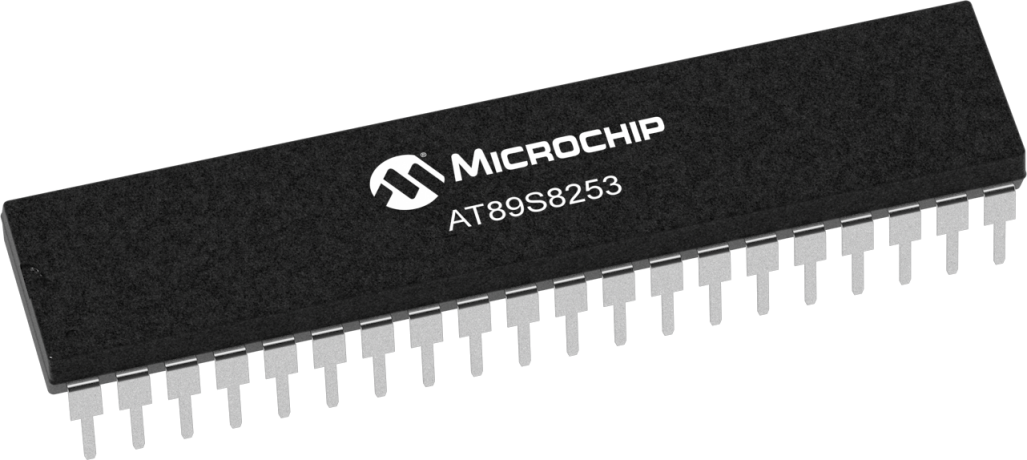

8-bit microcontroller (MCU) featuring an 8051 core architecture and operating at up to 24MHz. This integrated circuit offers 12KB of FLASH memory, 256 bytes of RAM, and an 8-bit address and data bus. Equipped with SPI, UART, and USART interfaces, it includes 32 I/Os, one SPI channel, one UART channel, and three timers/counters. The device supports through-hole mounting in a DIP package, with a supply voltage range of 2.7V to 5.5V and an operating temperature range of -40°C to 85°C. It is lead-free and RoHS compliant, with integrated POR and WDT peripherals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT89S8253-24PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 24us |
| Address Bus Width | 8b |
| Package/Case | DIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 4.445mm |
| Interface | SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 52.58mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 12KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of I/Os | 32 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 89S |
| Watchdog Timer | Yes |
| Width | 13.97mm |
| RoHS | Compliant |
