8-bit microcontroller featuring 128KB Flash memory and a 16MHz clock speed. Offers 34 I/Os and supports I2C, SPI, UART, USART, CAN, and EBI/EMI interfaces. Operates within a 2.7V to 5.5V supply range and a temperature range of -40°C to 125°C. Includes integrated peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and LVD. Packaged in a 64-TQFP format and is RoHS compliant.
Frequency16MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip AT90CAN128-16AUR technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Frequency
16MHz
Interface
I2C, SPI, UART, USART, CAN, EBI/EMI
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of I/Os
34
Oscillator Type
External
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
RoHS Compliant
Yes
Series
PIC® 18F
Compliance
RoHS
Compliant
Datasheet
Microchip AT90CAN128-16AUR Datasheet
Download the complete datasheet for Microchip AT90CAN128-16AUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

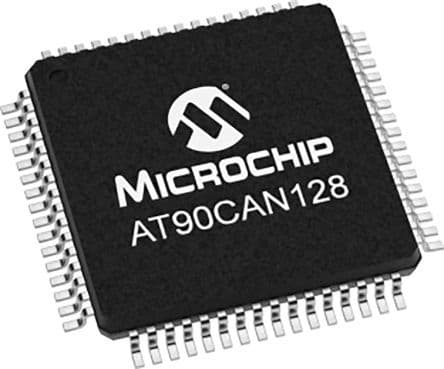

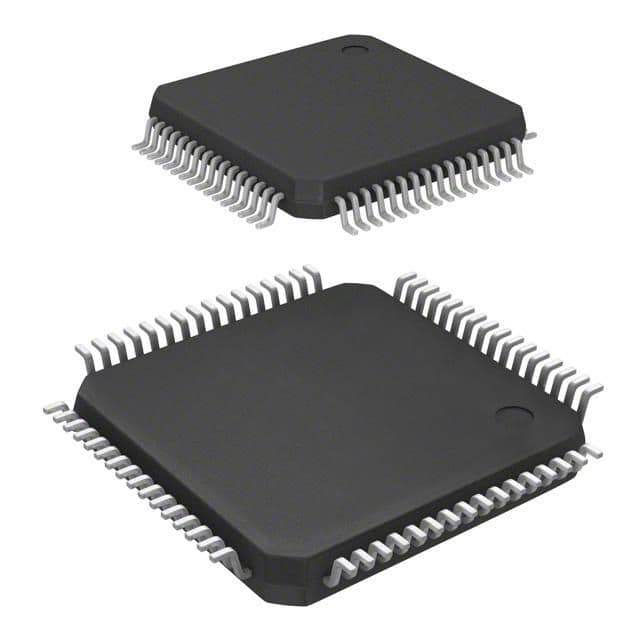

Product Images
