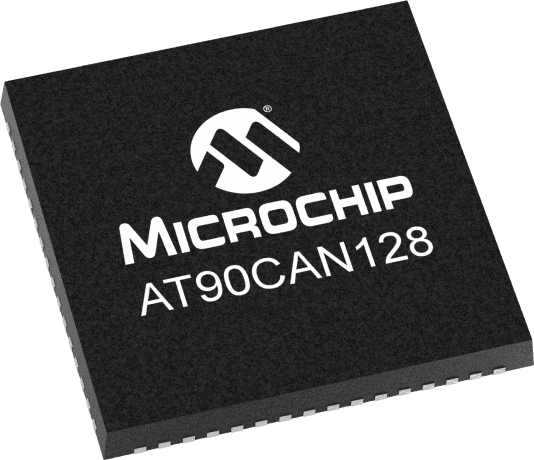

8-bit AVR microcontroller featuring 128KB FLASH memory and 4KB RAM. Operates at up to 16MHz with an internal oscillator. Offers I2C, SPI, UART, USART, EBI/EMI, and CAN interfaces. Includes 4 timers/counters, 53 I/Os, and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 64-pin QFN for surface mounting, with a temperature range of -40°C to 85°C and supply voltage from 2.7V to 5.5V.
Frequency16MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90CAN128-16MU technical specifications.
General
Access Time
16us
Package/Case
QFN
Core Architecture
AVR
Frequency
16MHz
Interface
I2C, SPI, UART, USART, EBI/EMI, CAN
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
53
Number of Timers/Counters
4
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® 90CAN
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip AT90CAN128-16MU Datasheet
Download the complete datasheet for Microchip AT90CAN128-16MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
