Technical Specifications
Microchip AT90PWM2-16SQ technical specifications.
General
Access Time
16us
Package/Case
SO
Core Architecture
AVR
Frequency
16MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
19
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
No
Series
AVR® 90PWM Lighting
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip AT90PWM2-16SQ Datasheet
Download the complete datasheet for Microchip AT90PWM2-16SQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

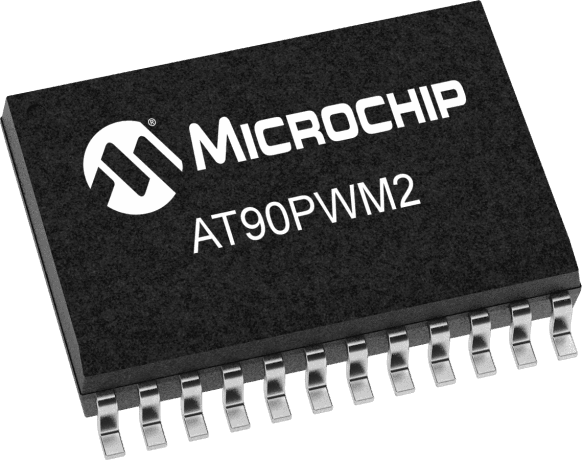

Product Images
