Technical Specifications
Microchip AT90PWM2-16SQR technical specifications.
General
Package/Case
SOIC
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Interface
SPI, UART, USART
Max Operating Temperature
105°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of I/Os
19
Oscillator Type
Internal
Package Quantity
1
Packaging
Cut Tape
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Series
AVR® 90PWM Lighting
Compliance
RoHS
Compliant
Datasheet
Microchip AT90PWM2-16SQR Datasheet
Download the complete datasheet for Microchip AT90PWM2-16SQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

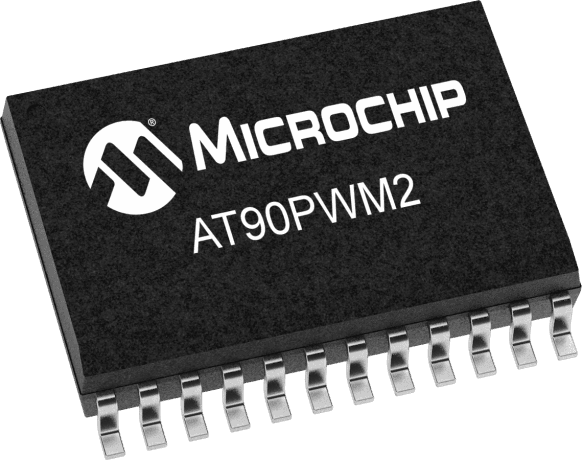

Product Images
