Frequency48MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90SCR100LSD-Z1T technical specifications.
General
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Interface
SPI, USART, 2-Wire, I2C, USB, UART
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of Programmable I/O
4
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
4KB
RoHS Compliant
No
Series
AVR® 90SCR
Compliance
RoHS
Not Compliant
Datasheet
Microchip AT90SCR100LSD-Z1T Datasheet
Download the complete datasheet for Microchip AT90SCR100LSD-Z1T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

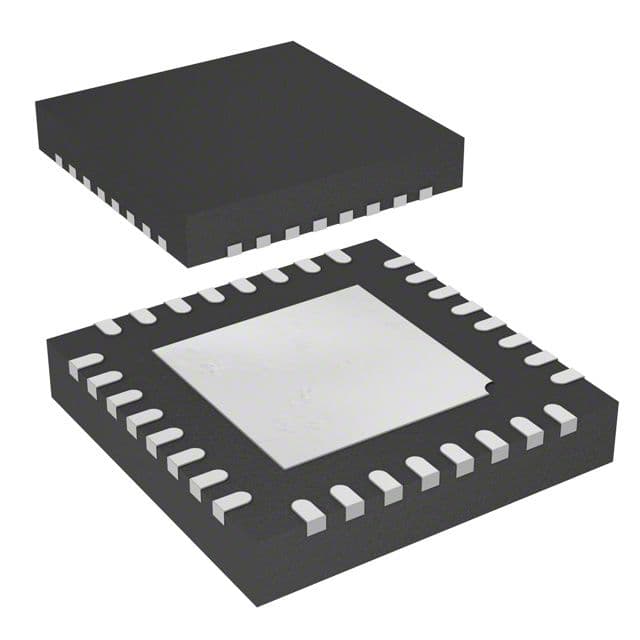

Product Images
