8-bit AVR microcontroller featuring 16KB FLASH memory and 512B RAM. Operates at up to 16MHz with an 8-bit address and data bus. Offers 22 I/Os, 5 PWM channels, and 2 timers. Integrated peripherals include SPI, USB, UART, USART, EBI/EMI interfaces, Brown-out Detect/Reset, POR, and WDT. Packaged in a 32-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C and supply voltage from 2.7V to 5.5V.
Frequency16MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90USB162-16AU technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
AVR
Data Bus Width
8b
Density
16KB
Frequency
16MHz
Height
1.05mm
Interface
SPI, USB, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
7mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
22
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT90USB162-16AU Datasheet
Download the complete datasheet for Microchip AT90USB162-16AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

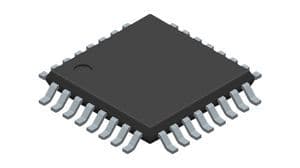

Product Images
