8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 16MHz with an 8-bit address and data bus. Offers SPI, USB, UART, USART, and EBI/EMI interfaces, along with 22 I/Os and 5 PWM channels. Internal oscillator, 2 timers/counters, and peripherals including Brown-out Detect/Reset, POR, and WDT. Surface mount QFN package with a 2.7V to 5.5V supply voltage range and operating temperatures from -40°C to 85°C.
Frequency16MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90USB82-16MU technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Height
1mm
Interface
SPI, USB, UART, USART, EBI/EMI
Length
5mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
22
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
No
Width
5mm
Compliance
RoHS
Not Compliant
Datasheet
Microchip AT90USB82-16MU Datasheet
Download the complete datasheet for Microchip AT90USB82-16MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

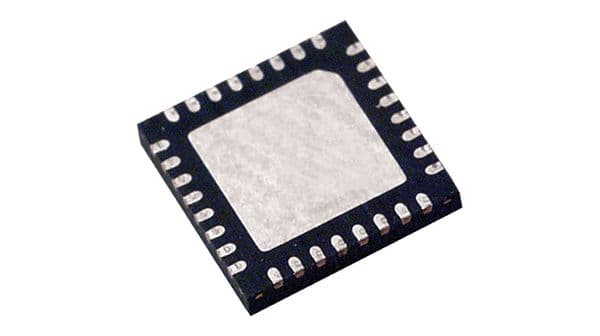

Product Images
