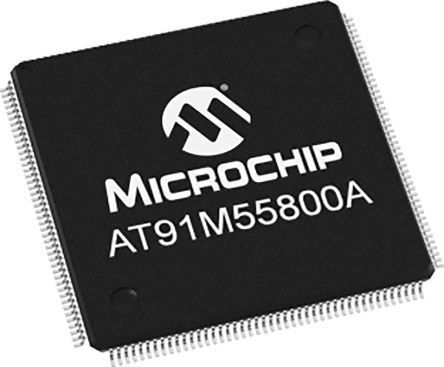

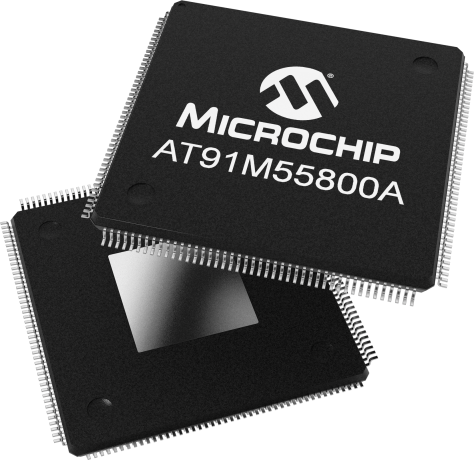

32-bit ARM microcontroller featuring a ROMless architecture and operating at 33MHz. This surface mount IC offers 8KB RAM, 58 programmable I/Os, and includes 6 timers/counters, POR, and WDT peripherals. Interfaces supported include SPI, UART, USART, and EBI/EMI. Operating voltage ranges from 2.7V to 3.6V, with an internal oscillator. Packaged in a 176-pin LQFP, this lead-free component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT91M55800A-33AU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip AT91M55800A-33AU technical specifications.
| Access Time | 33us |
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 33MHz |
| Height | 1.4mm |
| Interface | SPI, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 24mm |
| Max Frequency | 33MHz |
| Max Operating Temperature | 85°C |
| Memory Type | ROMless, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 58 |
| Number of Programmable I/O | 58 |
| Number of Timers/Counters | 6 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | POR, WDT |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AT91 |
| Watchdog Timer | Yes |
| Width | 24mm |
| RoHS | Compliant |
