32-bit ARM microcontroller featuring 64KB FLASH memory and 16KB RAM. Operates at up to 55MHz with a 32-bit data bus. Offers 32 I/Os, 8 ADC channels, 4 PWM channels, and multiple communication interfaces including I2C, SPI, USB, and UART. Packaged in a 64-pin LQFP for surface mounting, with an operating temperature range of -40°C to 85°C. Includes integrated peripherals such as DMA, WDT, and POR.
Frequency55MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91SAM7S64C-AU technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
55MHz
Height
1.6mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
55MHz
Max Operating Temperature
85°C
Max Supply Voltage
1.95V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT91SAM7S64C-AU Datasheet
Download the complete datasheet for Microchip AT91SAM7S64C-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

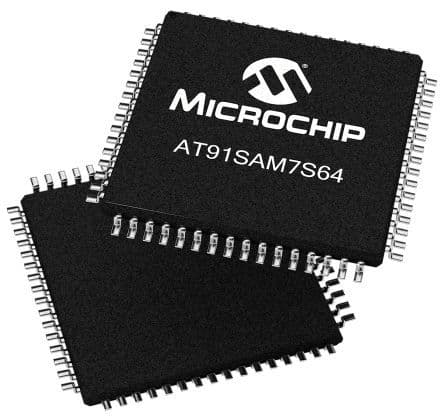

Product Images
