32-bit ARM Cortex-M3 microcontroller featuring 512KB FLASH and 32KB RAM. Operates at 55MHz with 88 I/Os, 4 PWM channels, and 3 timers/counters. Supports I2C, SPI, USB, UART, USART, and EBI/EMI interfaces. Packaged in LQFP, this lead-free and RoHS compliant component operates from -40°C to 85°C with a supply voltage range of 1.65V to 1.95V. Includes integrated peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency55MHz
PackageLQFP
Quick Jump:
Technical Specifications
Microchip AT91SAM7SE512B-AU technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Frequency
55MHz
Interface
I2C, SPI, USB, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.95V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
1.65V
Number of I/Os
88
Number of PWM Channels
4
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAM7SE
Compliance
RoHS
Compliant
Datasheet
Microchip AT91SAM7SE512B-AU Datasheet
Download the complete datasheet for Microchip AT91SAM7SE512B-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

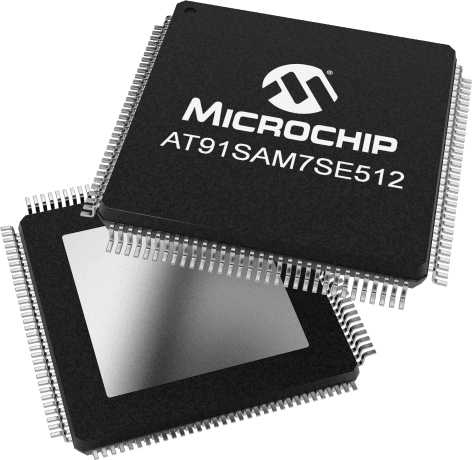

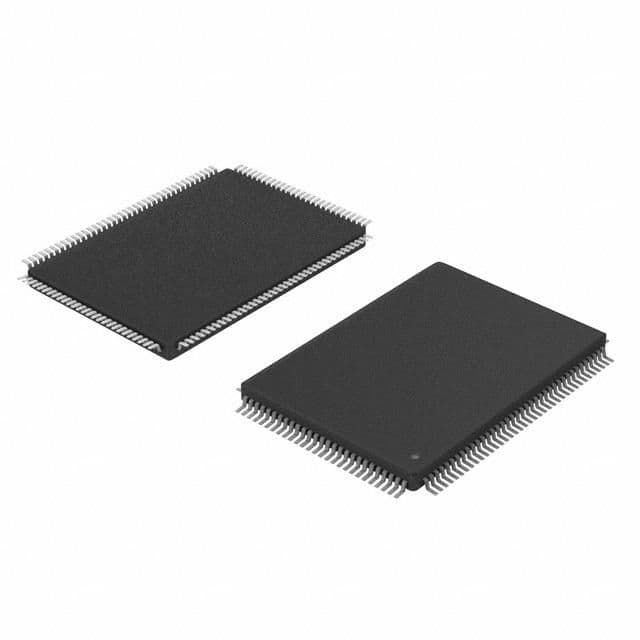

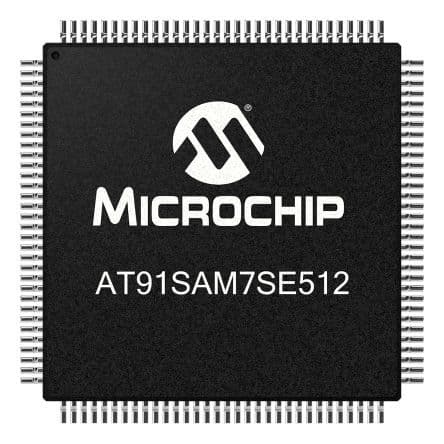

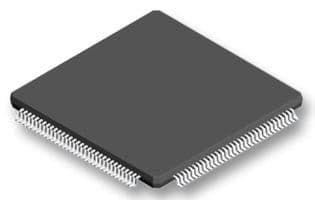

Product Images
