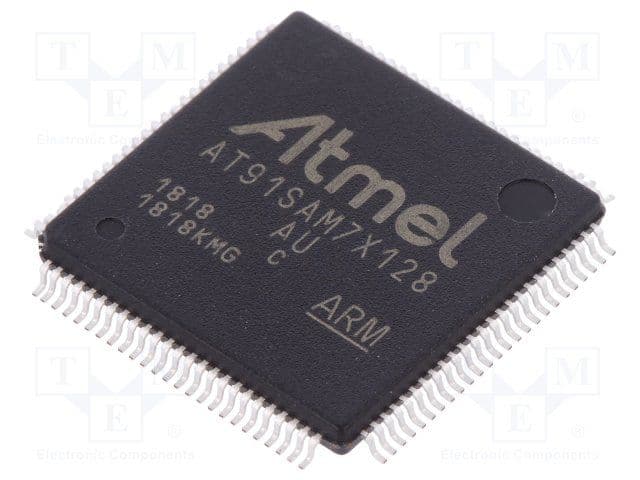

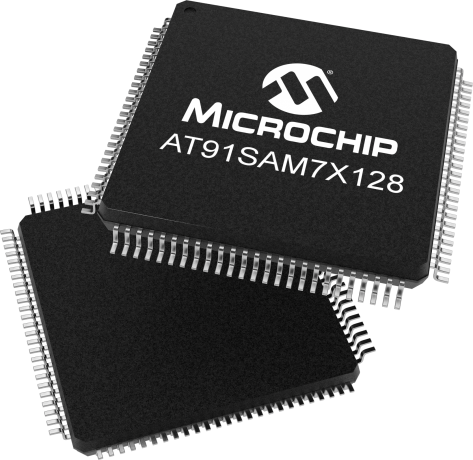

32-bit ARM microcontroller featuring 128KB FLASH memory and 32KB RAM. This surface mount IC operates at a maximum frequency of 30MHz with a 100Mbps data rate. It includes 8 ADC channels, 1 Ethernet channel, 1 I2C channel, 4 PWM channels, 1 SPI channel, 1 timer/counter, 1 UART channel, and 1 USB channel. The component is housed in a 100-pin LQFP package, measures 14mm x 14mm x 1.45mm, and operates from a 3.3V supply across a temperature range of -40°C to 85°C. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT91SAM7X128C-AU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Data Rate | 100Mbps |
| Height | 1.45mm |
| Length | 14mm |
| Max Frequency | 30MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of Ethernet Channels | 1 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Operating Supply Voltage | 3.3V |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Width | 14mm |
| RoHS | Compliant |
