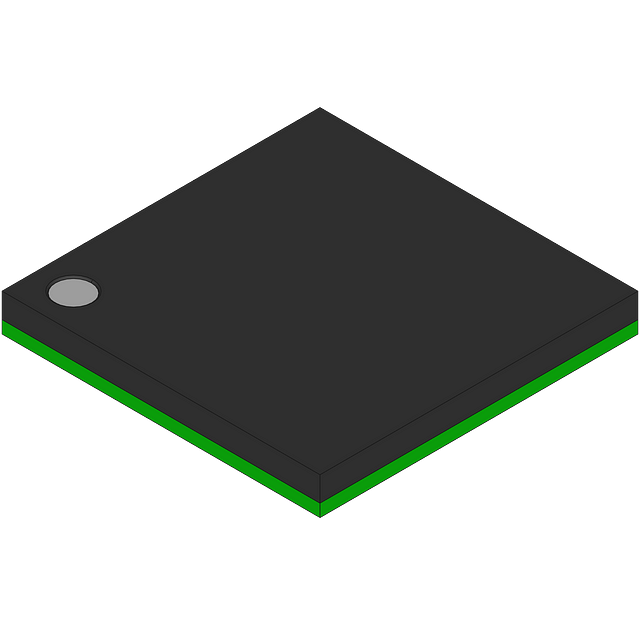

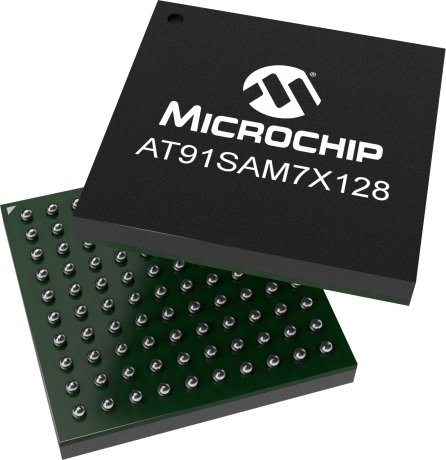

32-bit ARM Cortex-M3 microcontroller featuring 128KB FLASH and 32KB RAM. Operates at 55MHz with internal oscillator, supporting SPI, I2C, USB, Ethernet, UART, USART, CAN, and I2S interfaces. Surface mount TFBGA package with 62 I/Os, 3 timers/counters, and peripherals including Brown-out Detect, POR, PWM, WDT, and DMA. Operating voltage range of 1.81V to 3.6V, with a maximum operating temperature of 85°C. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT91SAM7X128C-CU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TFBGA |
| Contact Plating | Copper, Tin, Silver |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 55MHz |
| Interface | SPI, I2C, USB, Ethernet, UART, USART, CAN, I2S |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.81V |
| Mount | Surface Mount |
| Number of I/Os | 62 |
| Number of Programmable I/O | 62 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Series | SAM7X |
| Watchdog Timer | Yes |
| RoHS | Compliant |
